BORA X PURE PUXU2 – COOKTOP EXTRACTOR SYSTEM

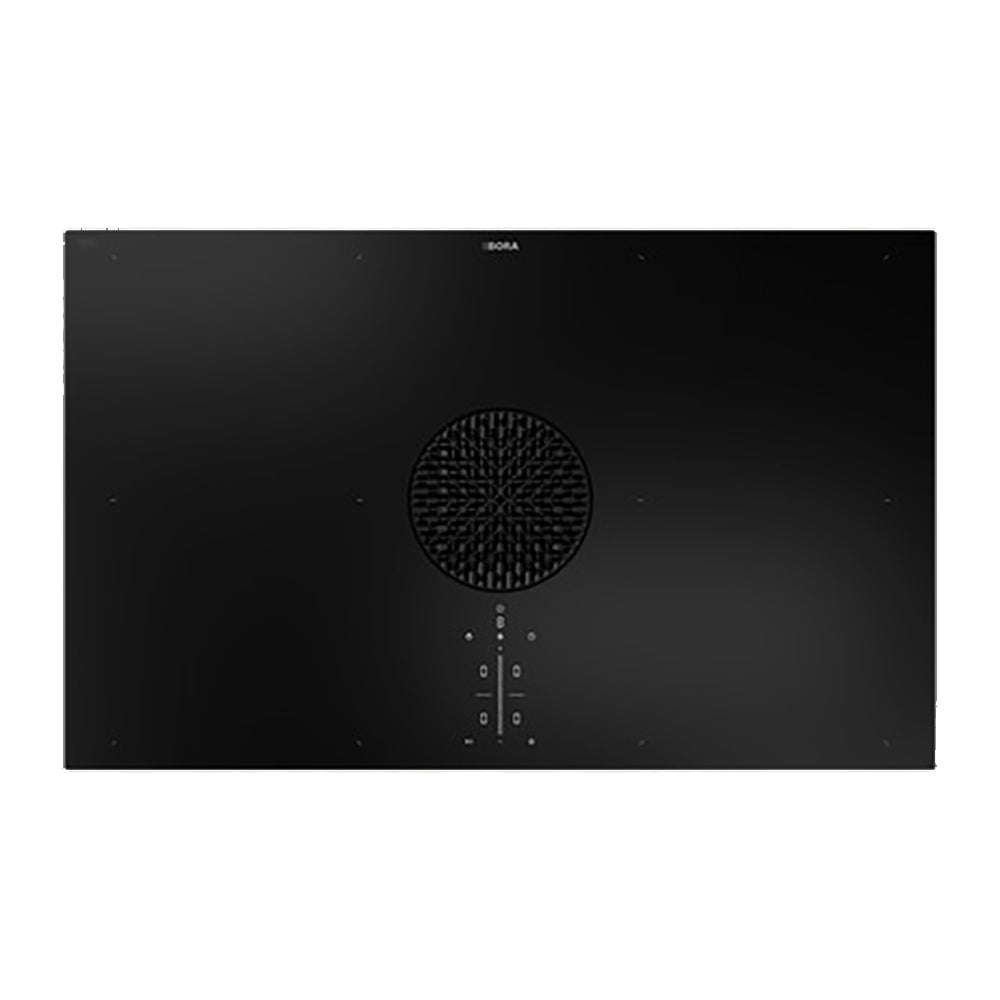

BORA X PUR PUXU2 – COOKTOP EXTRACTION SYSTEM - Surface induction glass ceramic cooktop with cooktop extractor (glossy glass ceramic) in recirculation mode.

PRODUCT DESCRIPTION

cooktop

• Glossy glass ceramic
• Power level for each cooking zone
• Bridging function
• Timer cooking zones
• Short-term alarm clock
• Residual heat indicator
• Pot detection
• Pause function
• Keep warm function
• Child lock

• Safety shutdown

• Demo mode
• BORA-Assist: Fry + Boil

Extraction system

• three-color sControl+ operation

• Power level

• Automatic trigger control

• Automatic after-run

• Cleaning lock

• Filter service indicator
• Power outlet at the front

Scope of delivery

• Surface induction hob with integrated hob extractor – recirculation PUXU2

• PUXED2 inlet nozzle, black

• PUEF stainless steel grease filter

• Activated carbon filter PUAKF

• Operating and assembly instructions

• drilling template

• Mounting clamp, sealing tape

• Height adjustment plate set

• Housing cover, power connection
• Mounting accessories for mains connection^

Planning notes

• Ensure adequate ventilation below the cooktop.

• Please note that induction-compatible cookware must be used with induction hobs.

• The connection cable must be provided by the customer.

• Front power connection box - Telescopic extension (extension up to 80 mm) of the air purification box for connection to the rear of the body.

• For extra-deep cooktop base cabinets, the telescopic pull-out can be extended by 105 mm with the additional PULBTA telescopic pull-out (available as an accessory).

TECHNICAL DATA

Connection voltage

• 400 V 2N / 3N
• 230 V

frequency

• 50 Hz

Maximum power consumption

• max. 7.6 kW

Security / Grid connection

• 3 x 16 A
• 2 x 16 A

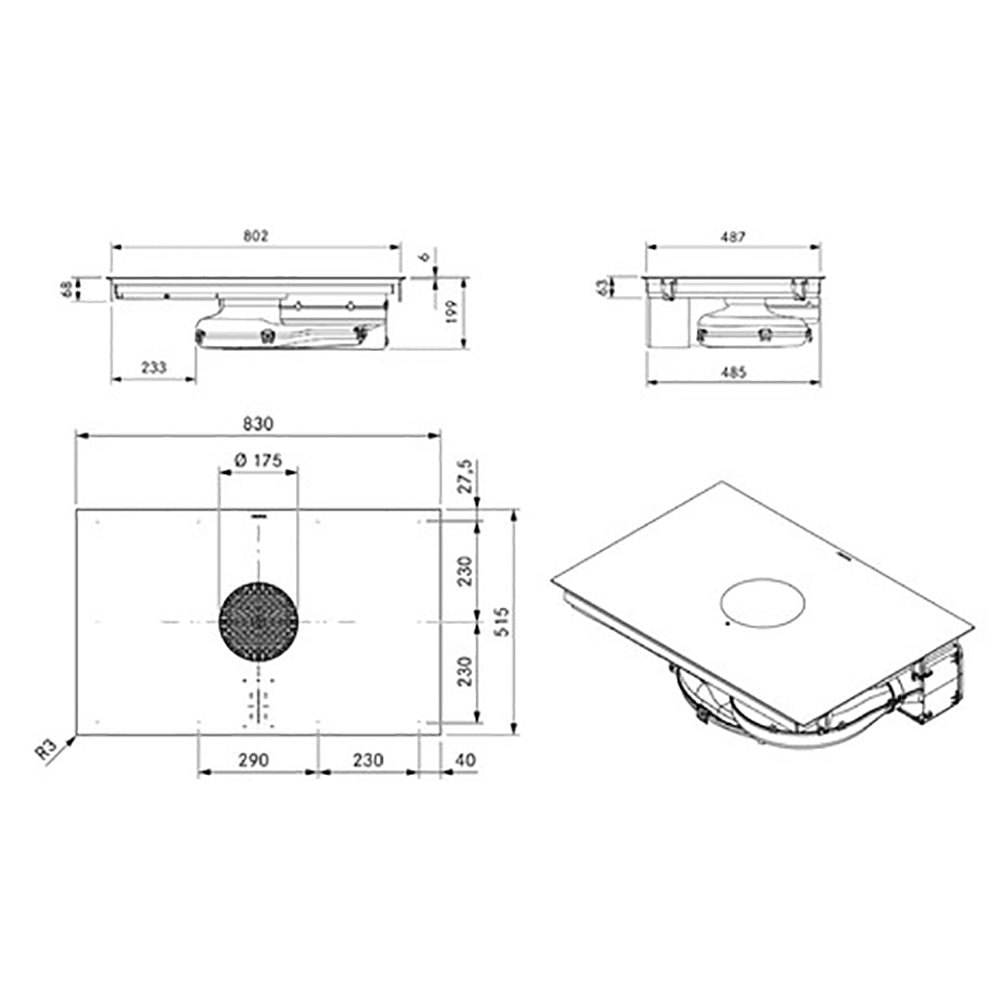

Device dimensions (excluding channel connections)

• 830 x 515 x 199 mm

Weight (including accessories / packaging)

• 24.5 kg

Material Surface

• Glass ceramic


HOB

Cooking zone at the front

• 230 x 230 mm
• 2100 W


Power level

• 3000 W

Cooking zone at the rear

• 230 x 230 mm
• 2100 W

Power level

• 3000 W

Performance levels

• 1 – 9, P



TUN SYSTEM

Performance levels

• 1 – 9, P

Recirculation connection

• 445 × 137 mm

AIR FILTER

Filter medium

• Activated carbon with ion exchanger

material

• Filter panel with fine filter

Maximum operating time.

• 150 hours / 1 year


The existing PUED inlet nozzle is not compatible.
