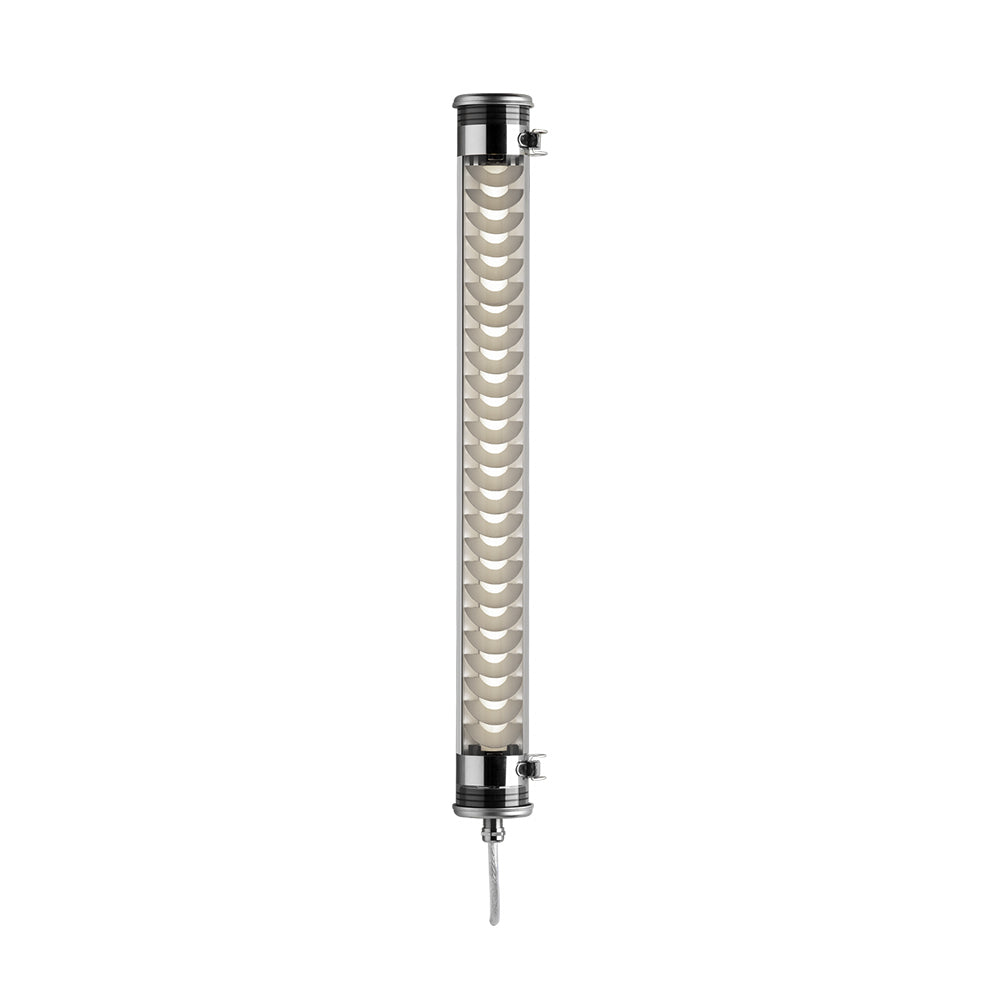

ELGAR TUBE 700 ARCHITECTURE - ELGAR 70 S 700 1100-827 BCVT

Description

• ELGAR vertical wall light with directed light output
• Housing: Co-extruded polycarbonate/PMMA for internal/external use
• End caps & band clamps: Stainless steel V2A
• Longitudinal louver grid made of brushed aluminum with angled louvers
• Equipment carrier: Internal equipment carrier made of sheet steel, grey painted, RAL 9006
• Seals: EPDM seals

Lighting technology & control

• Expandable, high-efficiency LED modules (IRC>80, 3 SDCM)
• Luminous flux: 1050 lm
• Color temperature: 3000 K
• Specially satin-finished light-diffusing primary optics
• Longitudinal lamella grid, reversible
• DALI protocol addressable drivers with constant current output

Installation and maintenance

• Diameter: 70 mm
• Total length: 995 mm
• Nickel-plated brass cable gland for cables Ø 5 - 12 mm
• Connection via terminal block 5x2.5mm² attached to the end cap.
• Mounting via reinforced stainless steel band clamps with buckle closure, variable spacing, and 360° adjustability.
• Close by tightening the nut on the cable gland.
• Close by tightening the nut on the cable gland.
• Quick opening and closing with only 1 screw
• Patented system for automatic connection upon closing
• Vertical installation: Cable entry points downwards
• Maintenance by opening the end cap without cable insertion
• LED modules and drivers are easily removable

Key data

• Warranty period: 5 years
• 50,000 h L80/B10 at 25°C
• Ambient temperature: -25 °C to +35 °C
• Protection rating: IP66, IP68 and IP69K
• Impact resistance: IK10
• Protection class: Class II
• Voltage: 220-240 V 50/60 Hz
• System power: 17 W
• Photobiological hazard: Group 0
• Fire resistance: 650 °C
• Number of lights on automatic control unit type B16: 28 pcs
• Weight: 2.7 kg
• Designed and manufactured in France
